Опоры ОСТ 34-10-618-93

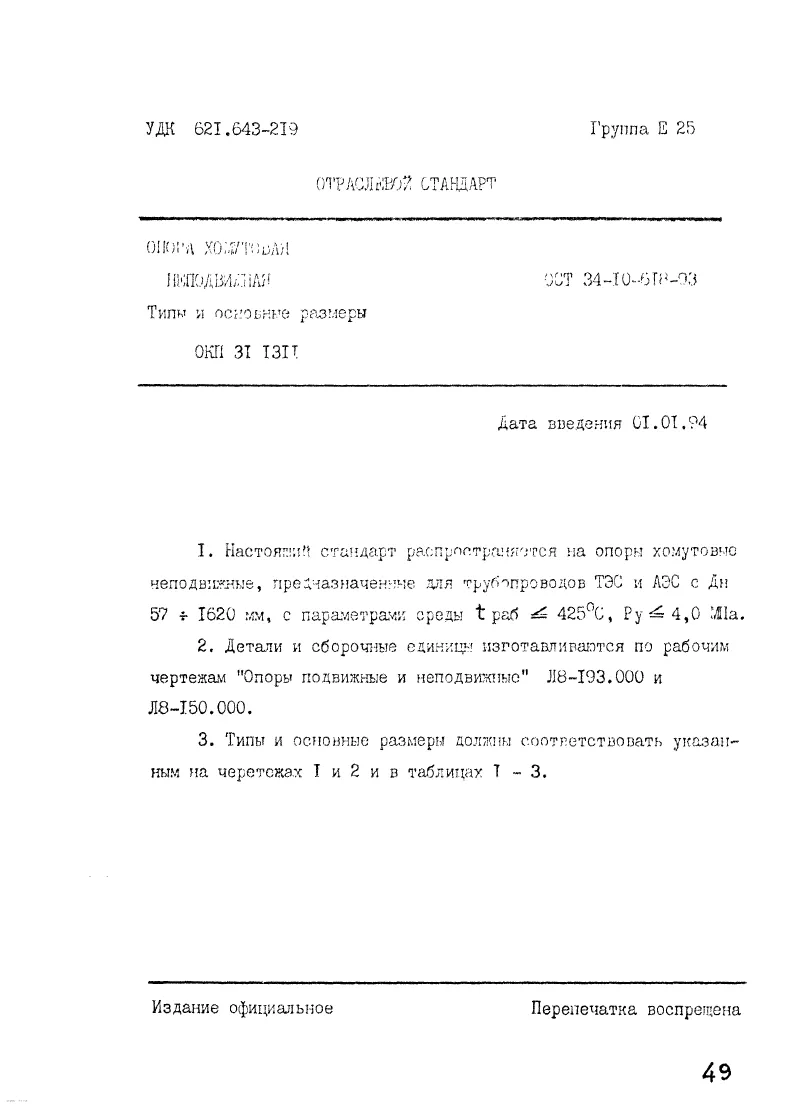

Опоры хомутовые неподвижные для трубопроводов ТЭС и АЭС ОСТ 34-10-618-93
Опоры неподвижные хомутовые ОСТ 34-10-618-93.
Назначение – жесткое крепление трубопровода на заданной высоте, не позволяющее перемещаться трубопроводу под действием нагрузок, образующихся при изменении температуры рабочей среды и других действующих на трубопровод факторах.
Применяются при прокладке трубопроводов наружным диаметром от Дн57 мм до Дн1620 мм.

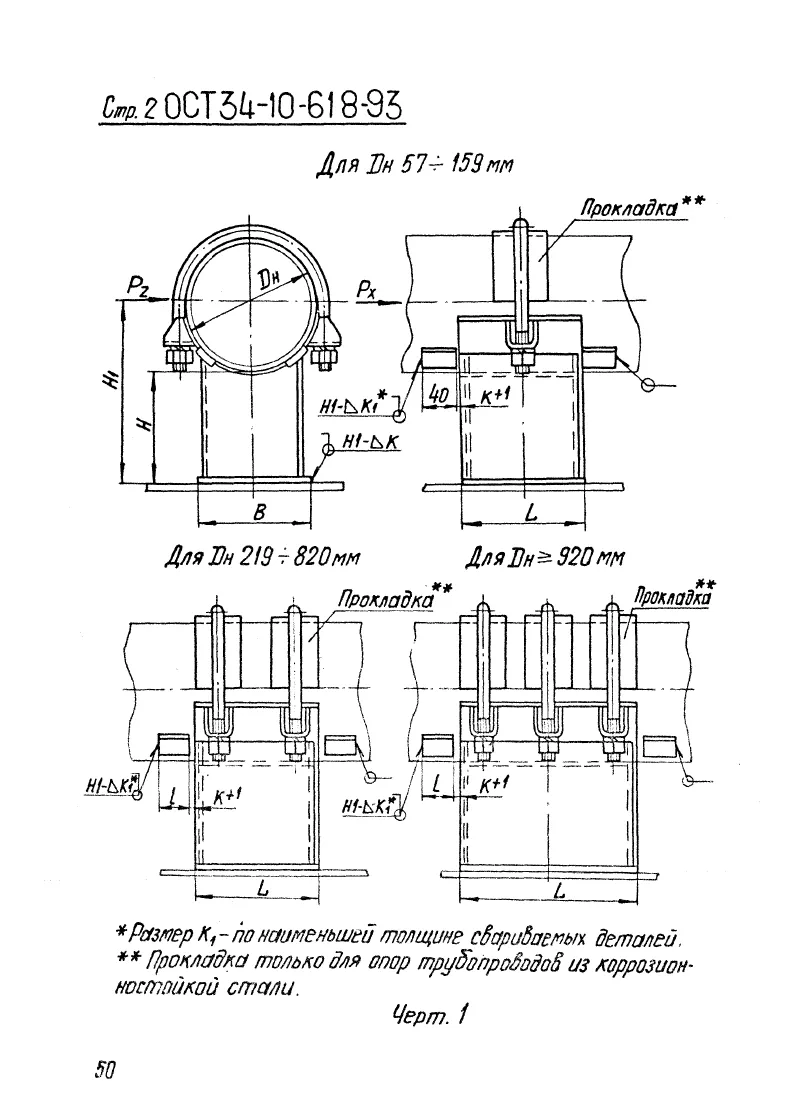

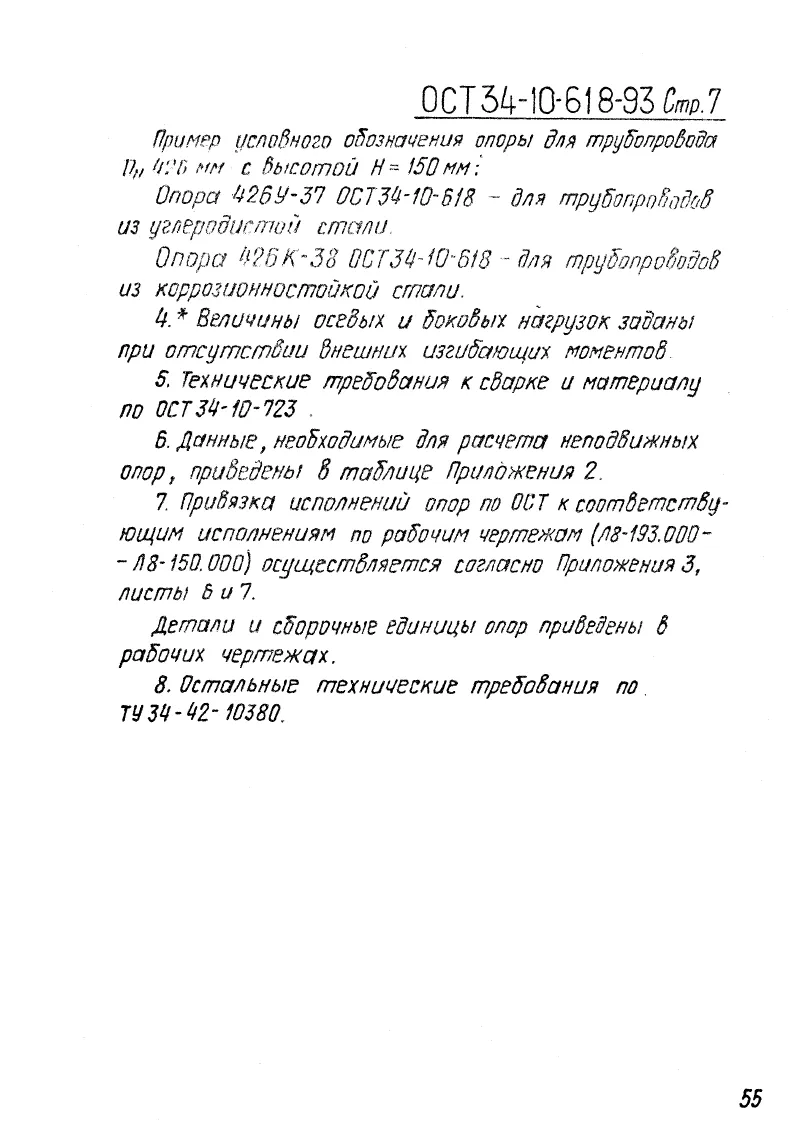

Неподвижные хомутовые опоры изготавливаются в соответствии с чертежами Л8-193.000 и Л8-150.000 по техническим требованиям ТУ 34-42-10380 и ОСТ 34-10-723.
№ |

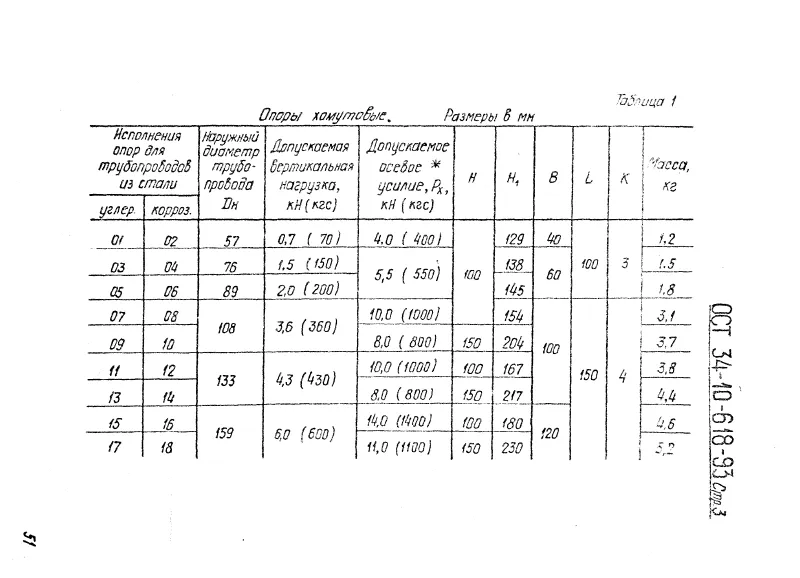

Наименование |
Вертикальная нагрузка, кН |
Диаметр Дн, мм |
Длина опоры, мм |
Масса опоры, кг |
|
1 |
57У-01 ОСТ 34-10-618-93 |
0,7 |
57 |
100 |
1,2 |
|
2 |
57К-02 ОСТ 34-10-618-93 |
0,7 |
57 |
100 |
1,2 |
|
3 |
76У-03 ОСТ 34-10-618-93 |
1,5 |
76 |
100 |
1,5 |
|
4 |
76К-04 ОСТ 34-10-618-93 |
1,5 |
76 |
100 |
1,5 |
|
5 |
89У-05 ОСТ 34-10-618-93 |
2,0 |
89 |
100 |
1,8 |
|
6 |
89К-06 ОСТ 34-10-618-93 |
2,0 |
89 |
100 |
1,8 |
|
7 |
108У-07 ОСТ 34-10-618-93 |
3,6 |
108 |
150 |
3,1 |
|
8 |
108К-08 ОСТ 34-10-618-93 |
3,6 |
108 |
150 |
3,1 |
|
9 |
108У-09 ОСТ 34-10-618-93 |
3,6 |
108 |
150 |
3,7 |
|
10 |
108К-10 ОСТ 34-10-618-93 |
3,6 |
108 |
150 |
3,7 |
|
11 |
133У-11 ОСТ 34-10-618-93 |
4,3 |
133 |
150 |
3,8 |
|
12 |
133К-12 ОСТ 34-10-618-93 |
4,3 |
133 |
150 |
3,8 |
|
13 |
133У-13 ОСТ 34-10-618-93 |
4,3 |
133 |
150 |
4,4 |
|
14 |
133К-14 ОСТ 34-10-618-93 |
4,3 |
133 |
150 |
4,4 |
|
15 |
159У-15 ОСТ 34-10-618-93 |
6,0 |
159 |
150 |
4,6 |
|
16 |
159К-16 ОСТ 34-10-618-93 |
6,0 |
159 |
150 |
4,6 |
|
17 |
159У-17 ОСТ 34-10-618-93 |
6,0 |
159 |
150 |
5,2 |
|
18 |
159К-18 ОСТ 34-10-618-93 |
6,0 |
159 |
150 |
5,2 |
|

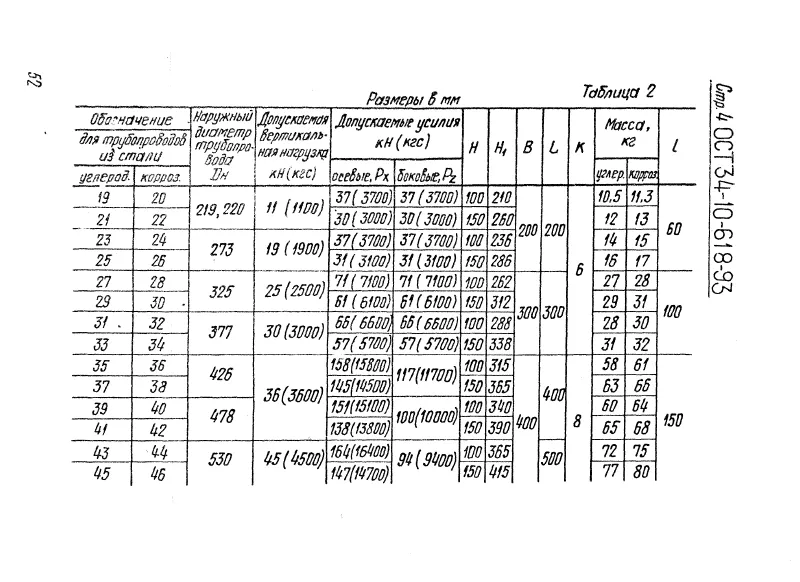

19 |
219У-19 ОСТ 34-10-618-93 |
11,0 |
219 |
200 |
10,5 |
|
20 |
219К-20 ОСТ 34-10-618-93 |
11,0 |
219 |
200 |
11,3 |
|
21 |
219У-21 ОСТ 34-10-618-93 |
11,0 |
219 |
200 |
12,0 |
|
22 |
219К-22 ОСТ 34-10-618-93 |
11,0 |
219 |
200 |
13,0 |
|
23 |
273У-23 ОСТ 34-10-618-93 |
19,0 |
273 |
200 |
14,0 |
|
24 |
273К-24 ОСТ 34-10-618-93 |
19,0 |
273 |
200 |
15,0 |
|
25 |
273У-25 ОСТ 34-10-618-93 |
19,0 |
273 |
200 |
16,0 |
|
26 |
273К-26 ОСТ 34-10-618-93 |
19,0 |
273 |
200 |
17,0 |
|
27 |
325У-27 ОСТ 34-10-618-93 |
25,0 |
325 |
300 |
27,0 |
|
28 |
325К-28 ОСТ 34-10-618-93 |
25,0 |
325 |
300 |
28,0 |
|
29 |
325У-29 ОСТ 34-10-618-93 |
25,0 |
325 |
300 |
29,0 |
|
30 |
325К-30 ОСТ 34-10-618-93 |
25,0 |
325 |
300 |
31,0 |
|
31 |
377У-31 ОСТ 34-10-618-93 |
30,0 |
377 |
300 |
28,0 |
|
32 |
377К-32 ОСТ 34-10-618-93 |
30,0 |
377 |
300 |
30,0 |
|
33 |
377У-33 ОСТ 34-10-618-93 |
30,0 |
377 |
300 |
31,0 |
|
34 |
377К-34 ОСТ 34-10-618-93 |
30,0 |
377 |
300 |
32,0 |
|
35 |
426У-35 ОСТ 34-10-618-93 |
36,0 |
426 |
400 |
58,0 |
|
36 |
426К-36 ОСТ 34-10-618-93 |
36,0 |
426 |
400 |
61,0 |
|
37 |
426У-37 ОСТ 34-10-618-93 |
36,0 |
426 |
400 |
63,0 |
|
38 |
426К-38 ОСТ 34-10-618-93 |
36,0 |
426 |
400 |
66,0 |
|
39 |
478У-39 ОСТ 34-10-618-93 |
36,0 |
478 |
400 |
60,0 |
|
40 |
478К-40 ОСТ 34-10-618-93 |
36,0 |
478 |
400 |
64,0 |
|
41 |
478У-41 ОСТ 34-10-618-93 |
36,0 |
478 |
400 |
65,0 |
|
42 |
478К-42 ОСТ 34-10-618-93 |
36,0 |
478 |
400 |
68,0 |
|
43 |
530У-43 ОСТ 34-10-618-93 |
45,0 |
530 |
500 |
72,0 |
|
44 |
530К-44 ОСТ 34-10-618-93 |
45,0 |
530 |
500 |
75,0 |
|
45 |
530У-45 ОСТ 34-10-618-93 |
45,0 |
530 |
500 |
77,0 |
|
46 |
530К-46 ОСТ 34-10-618-93 |
45,0 |
530 |
500 |
80,0 |
|

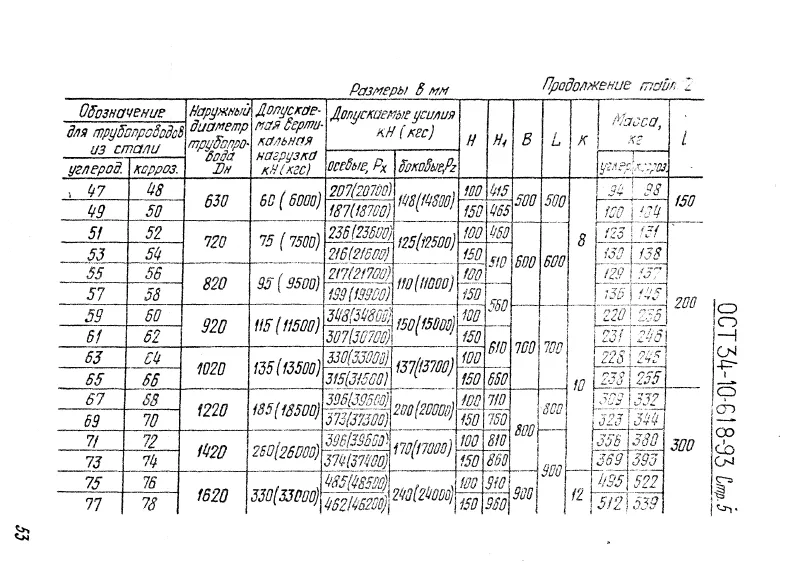

47 |
630У-47 ОСТ 34-10-618-93 |
60,0 |
630 |
500 |
94,0 |
|
48 |
630К-48 ОСТ 34-10-618-93 |
60,0 |
630 |
500 |
98,0 |
|
49 |
630У-49 ОСТ 34-10-618-93 |
60,0 |
630 |
500 |
100,0 |
|
50 |
630К-50 ОСТ 34-10-618-93 |
60,0 |
630 |
500 |
104,0 |
|
51 |
720У-51 ОСТ 34-10-618-93 |
75,0 |
720 |
600 |
123,0 |
|
52 |
720К-52 ОСТ 34-10-618-93 |
75,0 |
720 |
600 |
131,0 |
|
53 |
720У-53 ОСТ 34-10-618-93 |
75,0 |
720 |
600 |
130,0 |
|
54 |
720К-54 ОСТ 34-10-618-93 |
75,0 |
720 |
600 |
138,0 |
|
55 |
820У-55 ОСТ 34-10-618-93 |
95,0 |
820 |
600 |
129,0 |
|
56 |
820К-56 ОСТ 34-10-618-93 |
95,0 |
820 |
600 |
137,0 |
|
57 |
820У-57 ОСТ 34-10-618-93 |
95,0 |
820 |
600 |
136,0 |
|
58 |
820К-58 ОСТ 34-10-618-93 |
95,0 |
820 |
600 |
145,0 |
|
59 |
920У-59 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
220,0 |
|
60 |
920К-60 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
236,0 |
|
61 |
920У-61 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
231,0 |
|
62 |
920К-62 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
246,0 |
|
63 |
1020У-63 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
228,0 |
|
64 |
1020К-64 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
246,0 |
|
65 |
1020У-65 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
238,0 |
|
66 |
1020К-66 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
255,0 |
|
67 |
1220У-67 ОСТ 34-10-618-93 |
185.0 |
1220 |
800 |
309,0 |
|
68 |
1220К-68 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
332,0 |
|
69 |
1220У-69 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
323,0 |
|
70 |
1220К-70 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
344,0 |
|
71 |
1420У-71 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
358,0 |
|
72 |
1420К-72 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
380,0 |
|
73 |
1420У-73 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
369,0 |
|
74 |
1420К-74 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
393.0 |
|
75 |
1620У-75 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
495,0 |
|
76 |
1620К-76 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
522.0 |
|
77 |
1620У-77 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
512,0 |
|
78 |
1620К-78 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
539,0 |
|

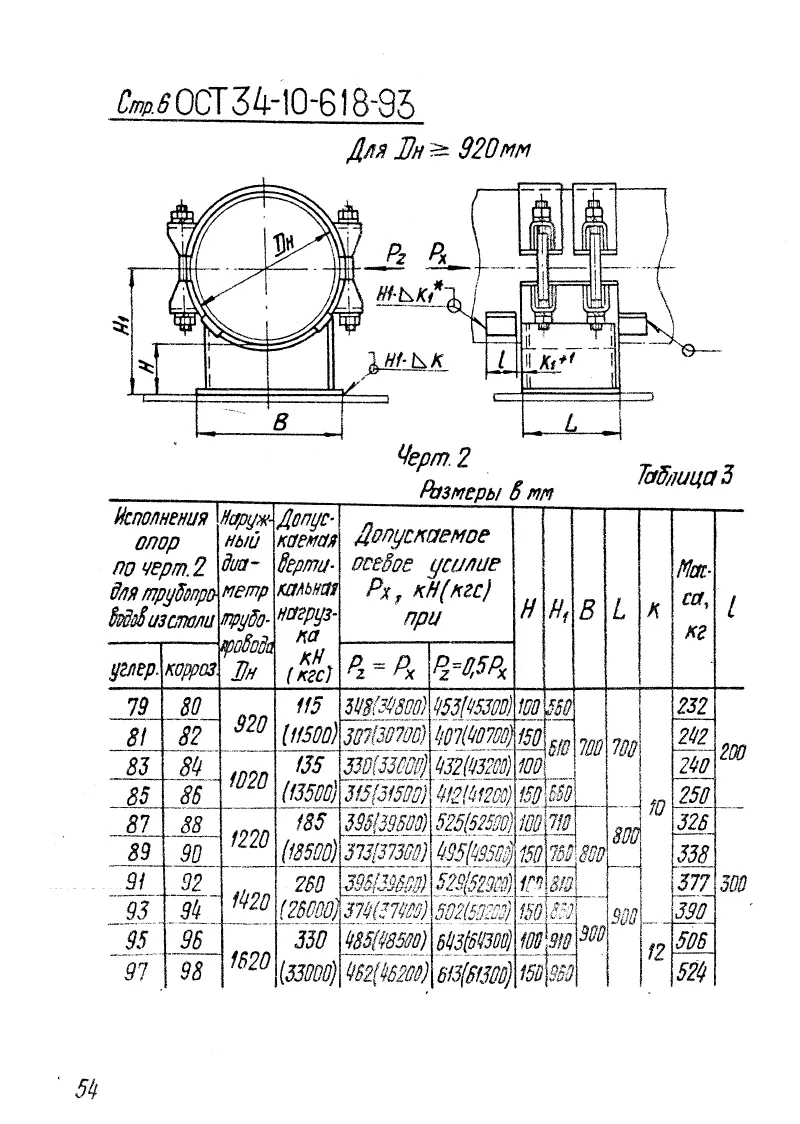

79 |
920У-79 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
232,0 |
|
80 |
920К-80 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
232,0 |
|
81 |
920У-81 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
242,0 |
|
82 |
920К-82 ОСТ 34-10-618-93 |
115,0 |
920 |
700 |
242,0 |
|
83 |
1020У-83 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
240,0 |
|
84 |
1020К-84 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
240,0 |
|
85 |
1020У-85 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
250,0 |
|
86 |
1020К-86 ОСТ 34-10-618-93 |
135,0 |
1020 |
700 |
250,0 |
|
87 |
1220У-87 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
326,0 |
|
88 |
1220К-88 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
326,0 |
|
89 |
1220У-89 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
338,0 |
|
90 |
1220К-90 ОСТ 34-10-618-93 |
185,0 |
1220 |
800 |
338,0 |
|
91 |
1420У-91 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
377,0 |
|
92 |
1420К-92 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
377,0 |
|
93 |
1420У-93 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
390,0 |
|
94 |
1420К-94 ОСТ 34-10-618-93 |
260,0 |
1420 |
900 |
390,0 |
|
95 |
1620У-95 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
506,0 |
|
96 |
1620К-96 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
506,0 |
|
97 |
1620У-97 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
524,0 |
|
98 |
1620К-98 ОСТ 34-10-618-93 |
330,0 |
1620 |
900 |
524,0 |
